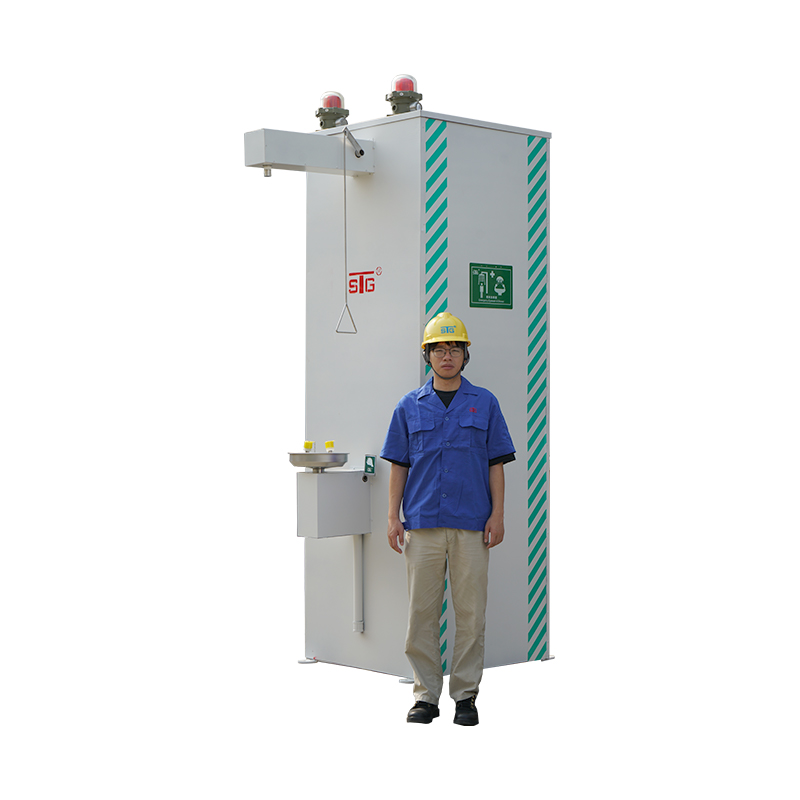

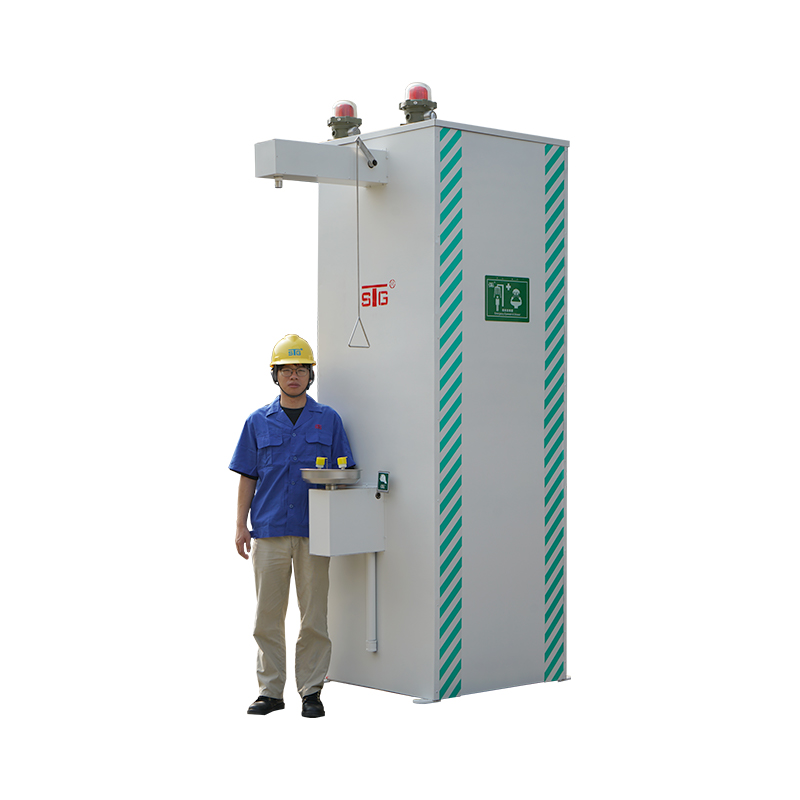

Emergency eyewash and shower with safety tank


The Emergency Eyewash and Shower with Safety Tank is an integrated safety emergency device designed to provide emergency rinsing and spatial protection in areas where chemicals are used. In addition to the standard vertical emergency shower and eyewash, this device includes a safety enclosure and a water storage tank, and can be directly installed on the floor of the work area. When chemical substances splash into the eyes and/or face, the user can quickly activate the eyewash; when chemicals splash onto the body or clothing, the shower provides sufficient rinsing fluid for full-body decontamination. Furthermore, the safety enclosure provides temporary privacy during emergency rinsing, and the water storage tank ensures a continuous supply of rinsing fluid even when the water supply is unstable or interrupted, meeting the requirement of at least 15 minutes of rinsing time.

Inquiry Now PDF Download
  • Product Advantages:
    Integrated Safety System: Combines shower, eyewash, safety enclosure, and water storage tank into a complete emergency unit, meeting rinsing needs in different accident scenarios.
    Continuous Water Supply Guarantee: Equipped with a water storage tank, providing backup rinsing fluid when the external water source is abnormal or water pressure fluctuates, ensuring a continuous and stable rinsing process.
    Privacy and Protection: The enclosure structure creates a semi-enclosed space during rinsing, reducing external interference and protecting the user's privacy and safety.
    Efficient Emergency Response: Both the shower and eyewash can be quickly activated for immediate rinsing, minimizing further damage to the skin and eyes from chemicals.
    Robust and Durable Materials: Main components are made of corrosion-resistant SS304 stainless steel, suitable for industrial environments, and ensuring a long service life.



    Product Applications:
    Chemical Plants and Laboratories: Suitable for work areas where chemical splashes may occur, such as around reaction vessels and near laboratory workbenches.
    Electroplating and Surface Treatment Workshops: Used in workstations with a high risk of contact with corrosive liquids such as acids and alkalis.
    Pharmaceutical and Bioengineering Facilities: Provides emergency rinsing support for operating environments involving toxic and corrosive raw materials.
    Warehousing and Logistics Areas: Installed in chemical storage or dispensing areas to meet relevant safety regulations.



    Ambient temperature -40~38°C
    Operating temperature 22~38°C
    Inlet size 1-1/2" RF-FLANGE-ASME-B16.5-CL150#
    Air outlet 1/2" FNPT
    Discharge outlet 1/2" FNPT
    Outlet size 1-1/2" FNPT
    Operating pressure 0.2~0.4 MPa
    Washing liquid Tap water for drinking
    Shower water flow 85~90 L/MIN
    Eye wash and Face wash water flow 12~15 L/MIN
    Washing Time >15 MIN
    THE MATERIAL OF THE UNIT
    Shower (S3) SS304
    Eyewash elbow (E2) SS304
    Eyewash bowl (B2) SS304
    Shower valve SS304, Size: 1"
    Eyewash valve SS304, Size: 1/2"
    Pipe SS304
    Material of Tank SS304
    Volume of Tank Min 1200L
    Material of the frame CS+Paint (Option: SS304)
    Material of the shell CS+Paint (Option: SS304)
    Technical parameters of electrical instruments
    Voltage of the heating traced cable 220VAC/230VAC
    The size and type of power M25*1.5, SS304  Standard Cable Gland (for Heat Trace Power Supply)
    Explosion-proof level and protection level of the junction box and TC Exd IIC T6,IP66
    Explosion-proof level and protection level of heating trace cable Exe IIC T6,IP66
    The power of heating trace cable 2000~3000W
    Static grounding to the wire post M10
    Explosion-proof level and protection level of Alarm, Light, and Limit
    switch(Option project
    Exd IIC T6,IP66
    Operation method
    Shower Hand Pull
    Eye/face wash Hand push
    Packing size and weight
    Packing and size Pallet packing, LWH = 1650*1000*2600 mm
    Weight 600KG
