Freeze-Protective type immersed ABS Emergency eyewash and shower

Product Advantages:
Automatic Drainage Anti-Freezing Technology: The device integrates an anti-freezing structure that automatically drains residual water from the shower and eyewash pipes after use, preventing pipe freezing and blockage in harsh cold conditions.
Strict Temperature Control Standards: The device is designed to operate in ambient temperatures above -5℃, and the operating water temperature must be maintained within the 16-38℃ range to ensure the water temperature meets human safety standards during emergency flushing.
High-Standard Material Integration: Core components such as the shower head, eyewash elbow, eyewash basin, and pipes are all made of SS304 stainless steel, combined with an immersed ABS coating process, enhancing the device's durability in complex chemical environments.

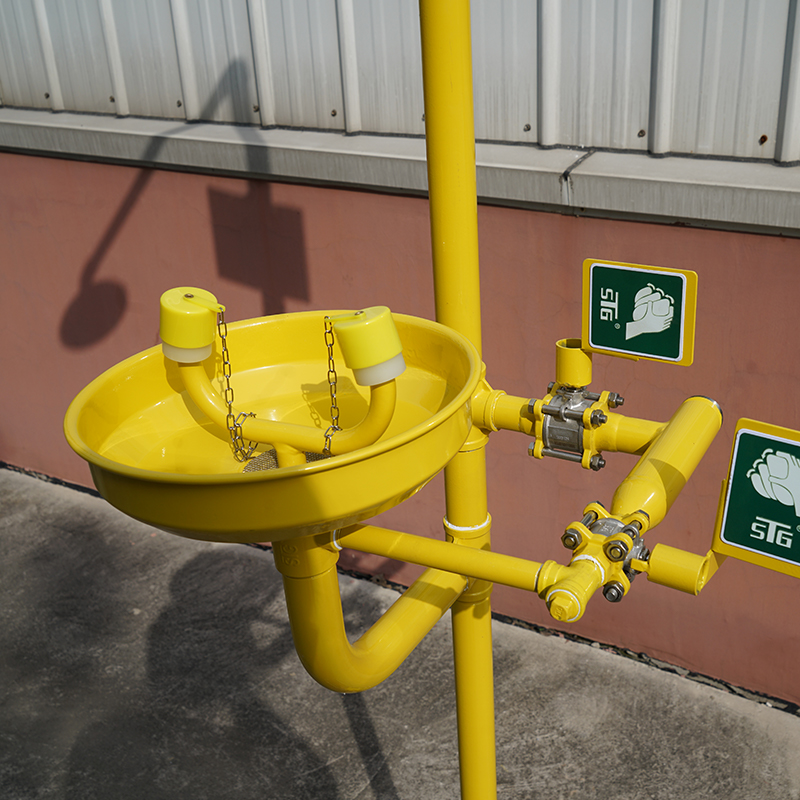

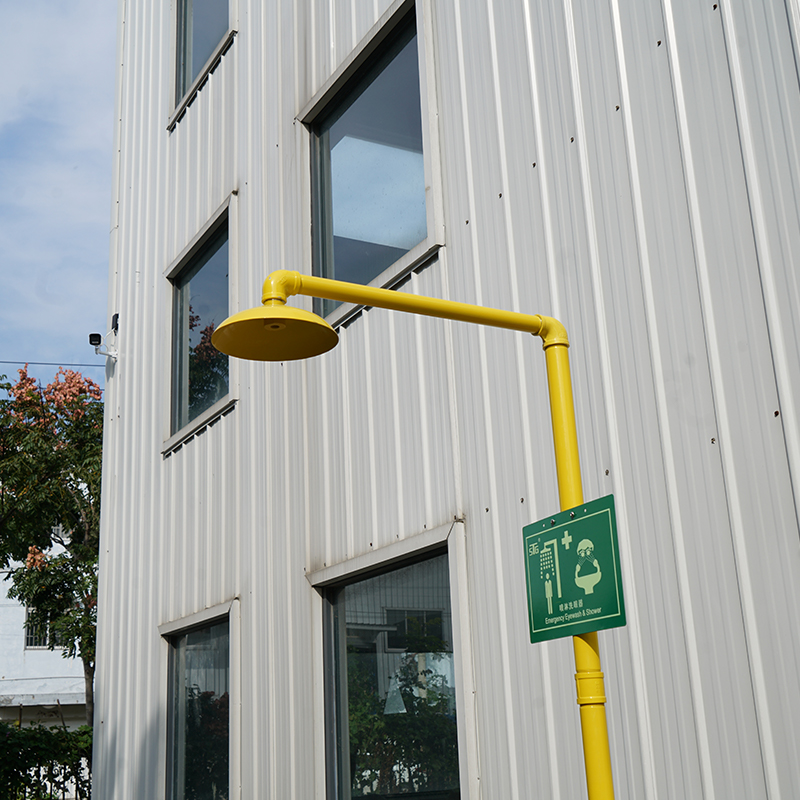

Dual-Function Emergency Rescue: Equipped with a push-type operating valve, it can separately activate a high-flow shower (>76 L/MIN) for body flushing and an eyewash system (>11.4 L/MIN) for eye and face rescue. Standardized Interface and Installation: Both the inlet and outlet use standard 1-1/4" FNPT interfaces (compliant with ASME B1.20.1), suitable for operating pressures of 0.2~0.4 MPa, facilitating quick installation in industrial settings.
Diverse Optional Configurations:  Based on site requirements, additional auxiliary facilities such as audible and visual alarms, DCS remote monitoring, lighting, hot water storage tanks, and foot pedals can be configured to improve emergency response efficiency.

Main Application:
This equipment is installed directly on the workshop floor and is primarily used to provide immediate, high-volume flushing when workers' eyes, face, or other body parts are splashed with chemicals. The flushing time must be ensured to be greater than 15 minutes, making it an important safety facility for industrial production.
