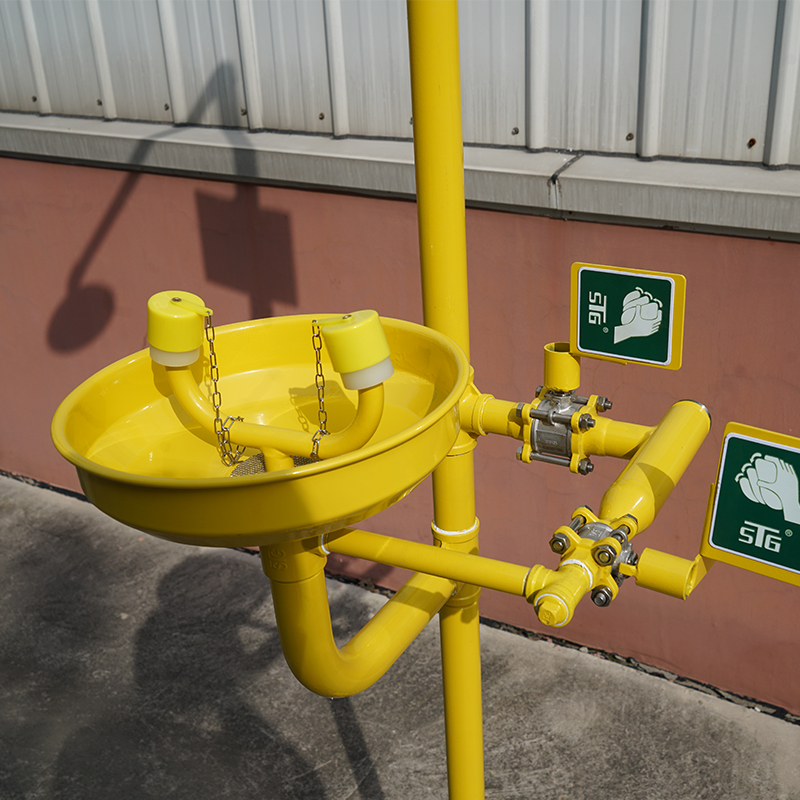

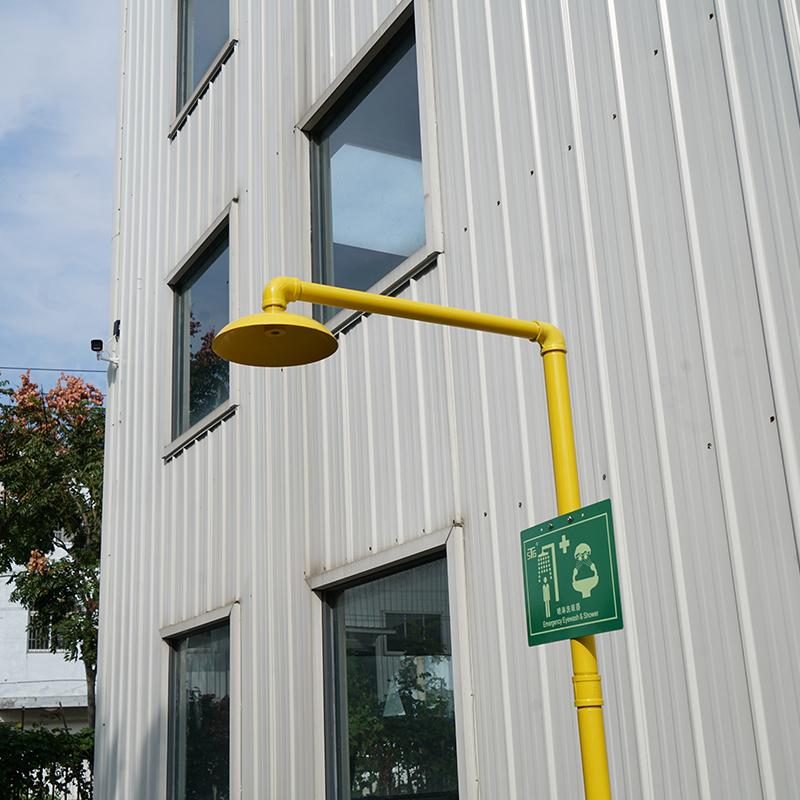

Common type immersed ABS Emergency eyewash and shower


The Common Type Immersed ABS Emergency Eyewash and Shower is an emergency safety protection device specifically designed for work environments with potential risks of eye and facial injuries. Unlike traditional all-stainless steel or engineering plastic eyewash stations, its core advantage lies in the use of composite materials and processes. The main structure is made of high-strength ABS engineering plastic, which is then subjected to an overall immersion coating process, forming a dense, tough, and corrosion-resistant protective layer. This design allows the "Common Type Immersed ABS Composite Eyewash Station" to maintain structural strength while possessing excellent chemical corrosion resistance, UV aging resistance, and insulation properties. It can effectively handle a variety of complex working conditions, especially in places with corrosive substances such as acids, alkalis, and salts, where its durability and safety performance are particularly outstanding.

Inquiry Now PDF Download
  • Advantages:
    • Strong corrosion resistance: The immersion coating effectively resists the erosion of most chemicals, extending the service life of the equipment in harsh environments.
    • Excellent insulation performance: The non-metallic body and coating provide good electrical insulation, suitable for specific electrical-related environments.
    • Durable and anti-aging: Excellent UV resistance, suitable for outdoor installation, and not prone to fading or embrittlement.
    • Low maintenance costs: The smooth surface prevents dirt from adhering, making cleaning easy, and the anti-corrosion coating reduces the risk of rusting.



    Main Uses:
    • Suitable for chemical, electronics, electroplating, laboratories, and other places with the risk of chemical splashes.
    • Installed outdoors or in indoor areas with corrosive gases.
    • As a standard emergency safety facility in the workplace, used for initial rinsing of the eyes and face in emergency situations.



    TECHNICAL DATA
    The spraying and eye washing parts adopt automatic drainage technology, and after use, the accumulated water is
    automatically drained
    Ambient temperature >-5℃
    Operating temperature 16~38℃ (Guaranteed by site)
    Inlet size 1-1/4" FNPT
    Outlet size 1-1/4" FNPT
    Operating pressure 0.2~0.4 MPa
    Washing liquid Tap water for drinking
    Shower water flow >76 L/MIN
    Eye wash and Face wash water flow >11.4 L/MIN
    Washing Time >15 MIN
    The material of unit
    Shower (S2) SS304
    Eyewash elbow (E2) SS304
    Eyewash bowl (B2) SS304
    Shower valve SS304, Size: 1"
    Eyewash valve SS304, Size: 1/2"
    Pipe SS304
    Base SS304, Size: 200*200*5.0mm
    Operation method
    Shower Hand push
    Eye/face wash Hand push
    Packing size and weight
    Packing and size Carton packaging, LWH = 750*430*310mm
    Weight 20KG
