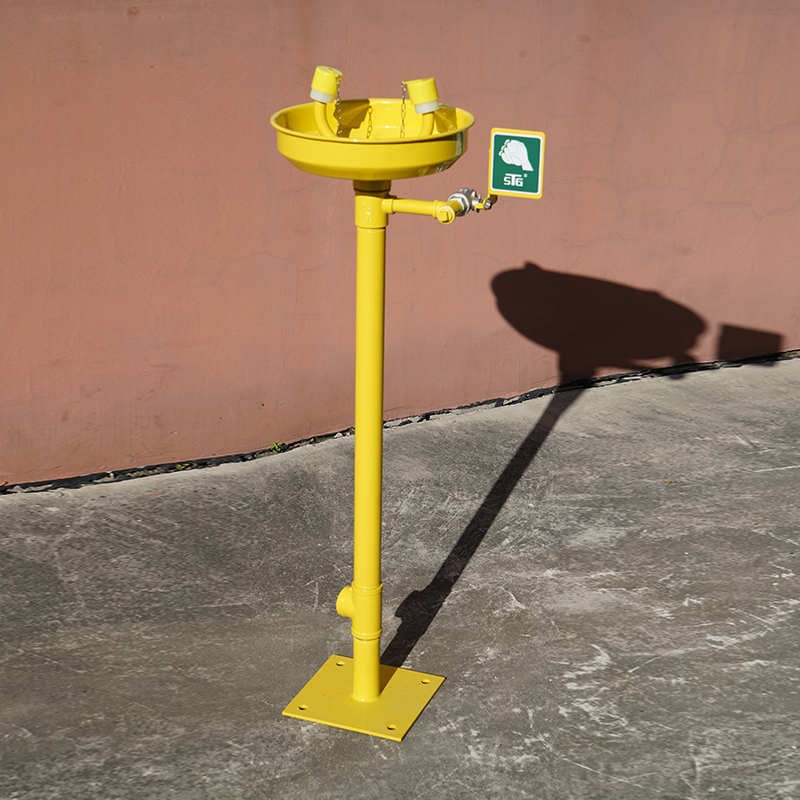

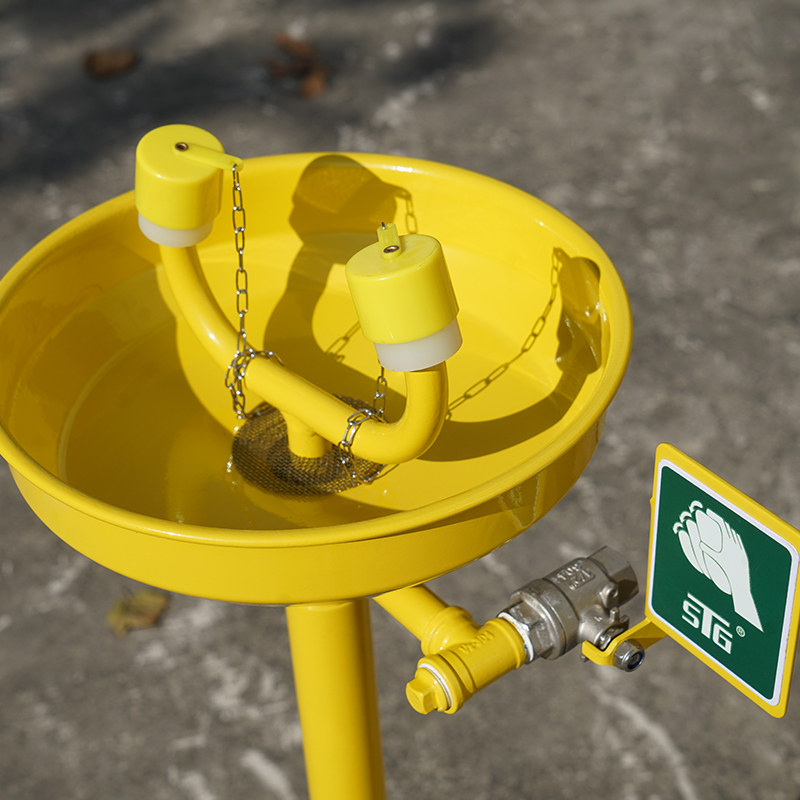

Freeze-Protective type immersed ABS Vertical Eye/face washer


The Freeze-Protective Immersed ABS Vertical Eye/Face Washer is an emergency eyewash device specifically designed for low-temperature environments, with an operating temperature range of -5–38℃. Compared to standard eyewash stations (5-38℃), it can be used in sub-zero temperatures, preventing pipe freezing and blockage.  The device is installed directly on the ground at the worksite, providing a high-flow rinsing solution when chemicals splash into the eyes or face. The rinsing time must be greater than 15 minutes to ensure effective emergency decontamination.

Inquiry Now PDF Download
  • Product Advantages:
    1. Ultra-low temperature adaptability
    It can operate stably in environments from -5 to 38℃ without the need for additional electric heating or antifreeze, directly addressing the problem of standard eyewash stations being unusable in low temperatures, such as during winter in northern regions.
    2. Efficient rinsing and decontamination
    The eyewash/face wash flow rate is >11.4 L/min, providing sufficient water flow to quickly dilute and remove chemical contaminants, reducing continuous harm to the body.
    3. Long-lasting corrosion resistance and durability
    The core components are made of SS304 stainless steel, and the main body is made of embedded ABS material, combining impact resistance and chemical corrosion resistance. It is compatible with potable tap water, avoiding secondary pollution and extending the service life of the equipment.
    4. Easy installation and operation
    It comes standard with a 200x200x5.0mm SS304 base for stable ground installation; standard industrial interfaces can be directly connected to on-site water pipes; the push-button activation design allows for one-step activation in emergencies without complex operations.
    5. Reliable safety protection
    Using clean potable tap water as the rinsing solution, combined with the antifreeze design, ensures that the equipment is always available in low-temperature environments, providing reliable emergency safety protection for workers.
    6. Maintenance-free and cost-effective
    The embedded antifreeze structure requires no additional maintenance, reducing the workload of equipment inspection and maintenance in winter, and lowering long-term operating costs.



    Application Scenarios:
    Manufacturing workshops in northern regions: For emergency rinsing in case of splashes of coolants, lubricants, etc., during winter.
    Outdoor chemical storage areas: For handling eye/face contamination caused by chemical spills in low-temperature environments.
    Winter construction sites in temperate regions: Providing antifreeze emergency eyewash protection for outdoor workers. Cold chain logistics and food processing workshops: Addressing accidental spills of low-temperature cleaning agents and disinfectants.



    TECHNICAL DATA
    Ambient temperature -5~38°C
    Operating temperature 16~38°C (Guaranteed by site)
    Inlet size 1/2" FNPT
    Outlet size 1-1/4" FNPT
    Operating pressure 0.2~0.4 MPa
    Washing liquid Tap water for drinking
    Eye wash and Face wash water flow > 11.4 L/MIN
    Washing Time > 15 MIN
    THE MATERIAL OF THE UNIT
    Eyewash elbow (E2) SS304
    Eyewash bowl (B2) SS304
    Eyewash valve SS304, Size: 1/2"
    Pipe SS304
    Base SS304, Size: 200*200*5.0mm
    OPERATION METHOD
    Eye/face wash Hand push
    PACKING SIZE AND WEIGHT
    Packing and size Carton packaging, L×W×H = 750×430×310 mm
    Weight 10 KG
