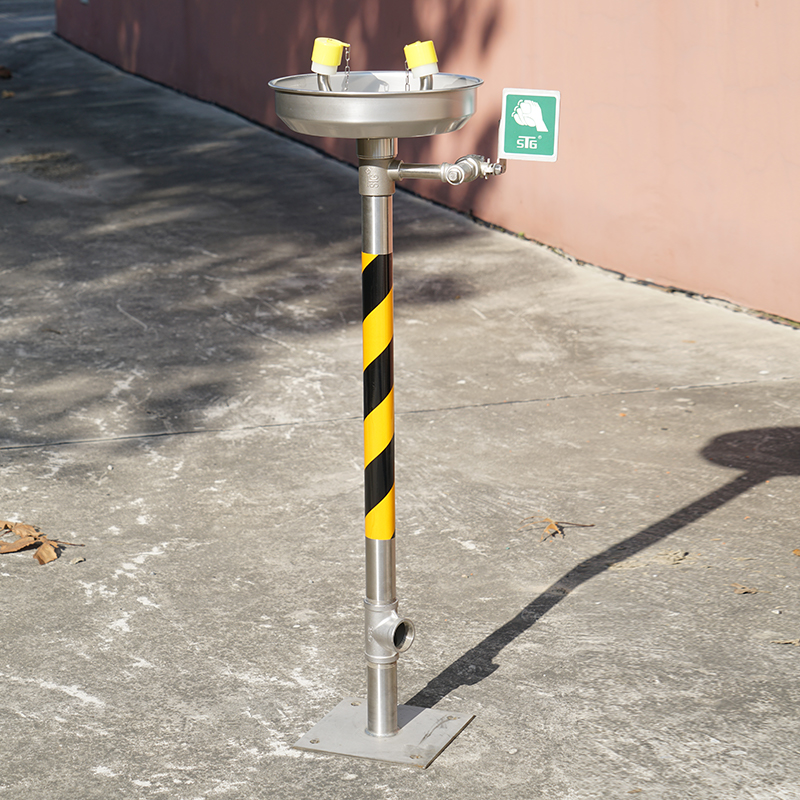

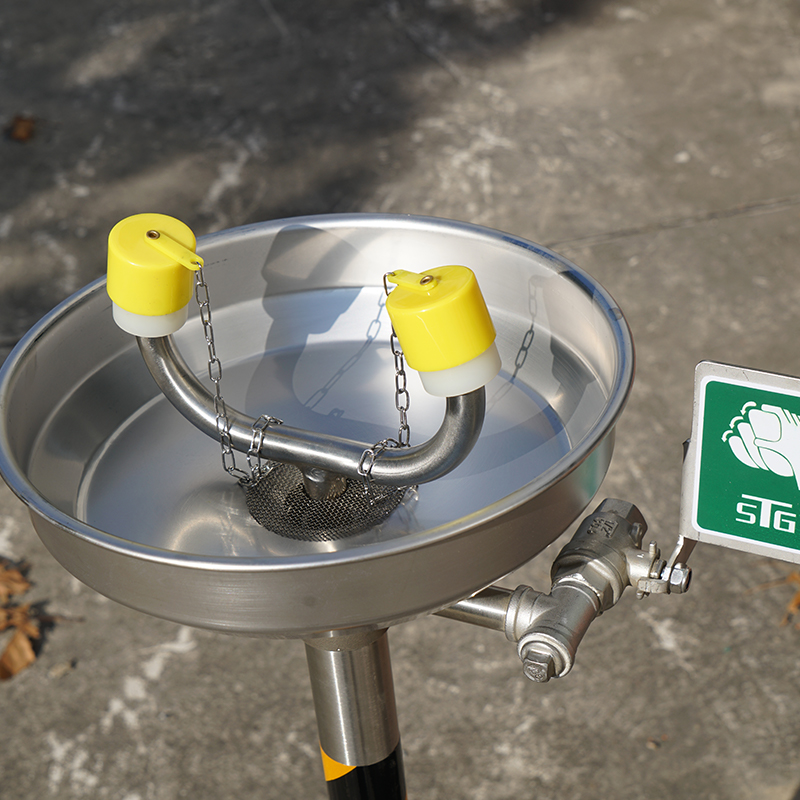

Freeze-Protective type Vertical Eye/face washer


The Freeze-Protective Vertical Eye/Face Washer is a freeze-resistant vertical eye/face wash unit specifically designed for low-temperature environments. Based on a standard vertical eyewash unit, this device integrates a freeze protection system, allowing it to function normally in ambient temperatures ranging from -5°C to 38°C. When the ambient temperature drops below freezing, its built-in anti-freeze device automatically activates, preventing water in the pipes and valves from freezing and ensuring the device is immediately available for use in emergencies. The device features a push-type valve control, a washing flow rate greater than 11.4 liters/minute, and a continuous flushing time exceeding 15 minutes, meeting the safety regulations for workplaces in cold regions and providing reliable emergency eye and face protection for personnel working in low-temperature environments.

Inquiry Now PDF Download
  • Technical Features:
    Low-Temperature Adaptability: Specially designed anti-freeze system ensures normal operation even at -5°C.
    Automatic Drainage Device: Automatically drains residual water from the pipes after use to prevent freezing.
    Rapid Emergency Response: Push-type valve design allows for quick activation in emergencies.
    Stable Flushing Performance: Optimized nozzle design ensures a stable and even water flow, completely covering the eye and face area.
    Durable Material Selection: SS304 stainless steel main structure, corrosion-resistant and low-temperature resistant, ensuring a long service life.



    Application Areas:
    • Chemical plants and industrial facilities in cold northern regions
    • Outdoor or semi-outdoor work areas in winter
    • Cold storage facilities, frozen food processing plants, and other low-temperature work environments
    • Laboratories and research facilities in cold regions



    TECHNICAL DATA
    Ambient temperature -5~38°C
    Operating temperature 16~38°C (Guaranteed by site)
    Inlet size 1/2" FNPT
    Outlet size 1-1/4" FNPT
    Operating pressure 0.2~0.4 MPa
    Washing liquid Tap water for drinking
    Eye wash and Face wash water flow > 11.4 L/MIN
    Washing Time > 15 MIN
    THE MATERIAL OF UNIT
    Eyewash elbow (E2) SS304
    Eyewash bowl (B2) SS304
    Eyewash valve SS304, Size: 1/2"
    Pipe SS304
    Base SS304, Size: 200*200*5.0mm
    OPERATION METHOD
    Eye/face wash Hand push
    PACKING SIZE AND WEIGHT
    Packing and size Carton packaging, L×W×H = 750×430×310 mm
    Weight 10 KG
