Product Advantages:

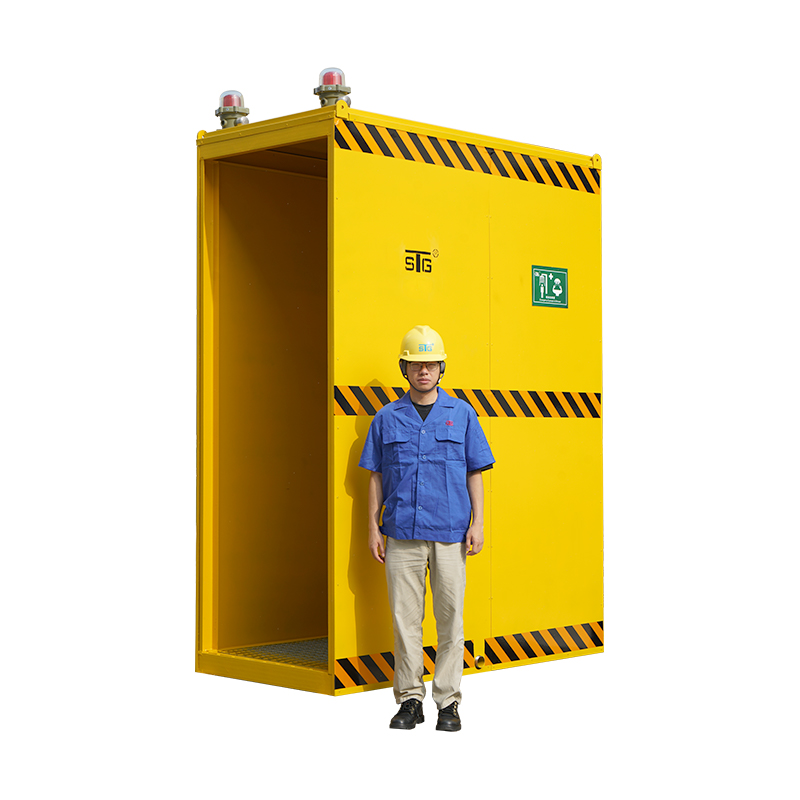

Independent Water Supply Guarantee: Equipped with a stainless steel SS304 water storage tank of at least 1200 liters, providing emergency rinsing water in case of external water source failure.
Stable Rinsing Performance: The water flow rate of the shower and eyewash units meets standards, ensuring that the rinsing effect meets emergency treatment requirements.
Weather-Resistant and Corrosion-Resistant Materials: The main flow-through components and storage tank are made of SS304 stainless steel, and the frame and side panels can be selected from carbon steel or SS304, suitable for industrial environments.
Adaptability to Cold Environments: An optional electric heating system (voltage 220VAC/230VAC) is available, equipped with an explosion-proof temperature control device with explosion-proof rating Exd IIC T6 and protection rating IP66, preventing pipeline freezing in low-temperature environments.
Standard Interface Design: The inlet uses a 1-1/2" RF flange, and the outlet is 1-1/2" FNPT, facilitating system connection and installation.
Product Applications:
Remote or Unstable Water Supply Work Areas: Suitable for chemical handling locations far from stable water sources or with insufficient water pressure.
Outdoor Installation in Cold Regions: Equipped with electric heating and explosion-proof electrical components, it can be used in outdoor or semi-open areas with ambient temperatures as low as -40℃.
High-Risk Chemical Handling Areas: Installed near workstations in chemical plants, laboratories, electroplating workshops, etc., where chemical leaks or splashes may occur.
Facilities Requiring Strict Safety Regulations: Suitable for pharmaceutical, petrochemical, and other companies that require a continuous water supply and explosion-proof requirements for emergency equipment.
| Ambient temperature |
-40~38°C |
| Operating temperature |
22~38°C |
| Inlet size |
1-1/2" RF-FLANGE-ASME-B16.5-CL150# |
| Air outlet |
1/2" FNPT |
| Discharge outlet |
1/2" FNPT |
| Outlet size |
Min 2" FNPT |
| Operating pressure |
0.2~0.4 MPa |
| Washing liquid |
Tap water for drinking |
| Shower water flow |
85~90 L/MIN |
| Eye wash and Face wash water flow |
12~15 L/MIN |
| Washing Time |
>15 MIN |
| THE MATERIAL OF THE UNIT |
| Shower (S3) |
SS304 |
| Eyewash elbow (E2) |
SS304 |
| Eyewash bowl (B2) |
SS304 |
| Shower valve |
SS304, Size: 1" |
| Eyewash valve |
SS304, Size: 1/2" |
| Pipe |
SS304 |
| Material of Tank |
SS304 |
| Volume of Tank |
Min 1200L |
| Material of the frame |
CS+Paint (Option: SS304) |
| Material of the shell |
CS+Paint (Option: SS304) |
| Shower room |
CS+Paint (Option: SS304) |
| TECHNICAL PARAMETERS OF ELECTRICAL INSTRUMENTS |
|
| Voltage of the heating traced cable |
220VAC/230VAC |
| Size and type of power interface |
M25×1.5, SS304 Standard Cable Gland (for heat trace power supply) |
| Explosion-proof and protection level of the junction box and TC |
Exd IIC T6, IP66 |
| Explosion-proof level and protection level of heating trace cable |
Exe IIC T6, IP66 |
| Power of heating trace cable |
2000~3000W |
| Static grounding to the wire post |
M10 |
| Explosion-proof level and protection level of Alarm, Light, and Limit switch (Optional) |
Exd IIC T6, IP66 |
| OPERATION METHOD |
| Shower |
Hand Pull |
| Eye/face wash |
Hand push |
| PACKING SIZE AND WEIGHT |
| Packing and size (2 units per package) |
Pallet packing, L×W×H = 2150×1000×2750 mm |
| Weight (2 units per package) |
600KG |
