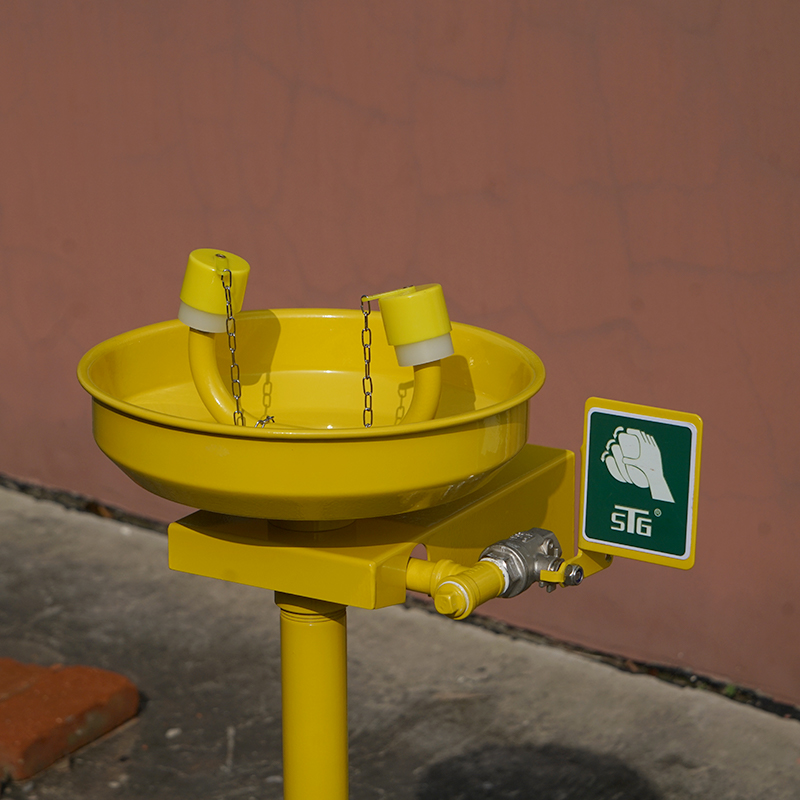

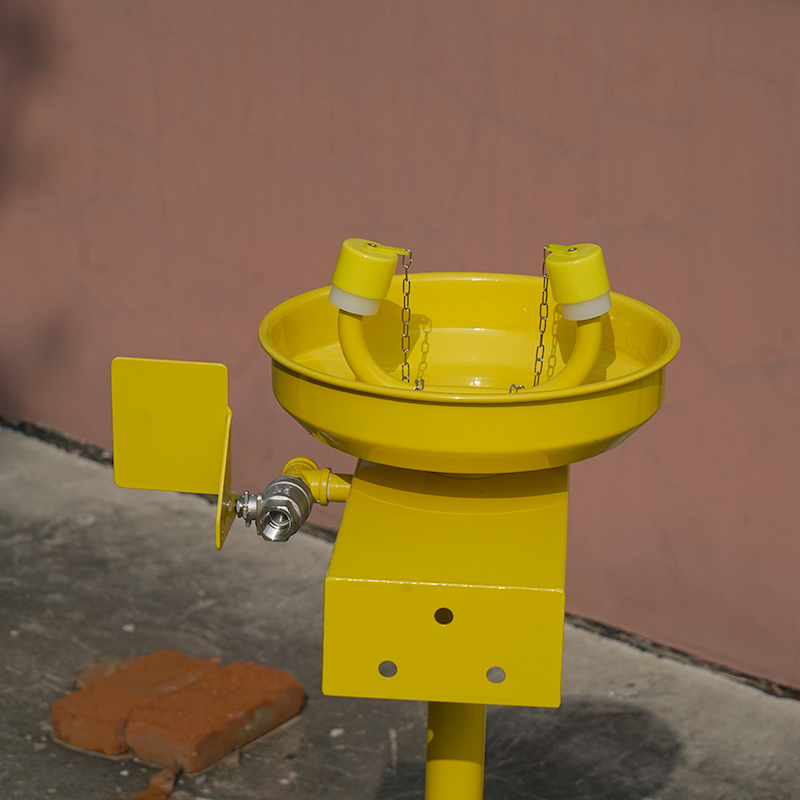

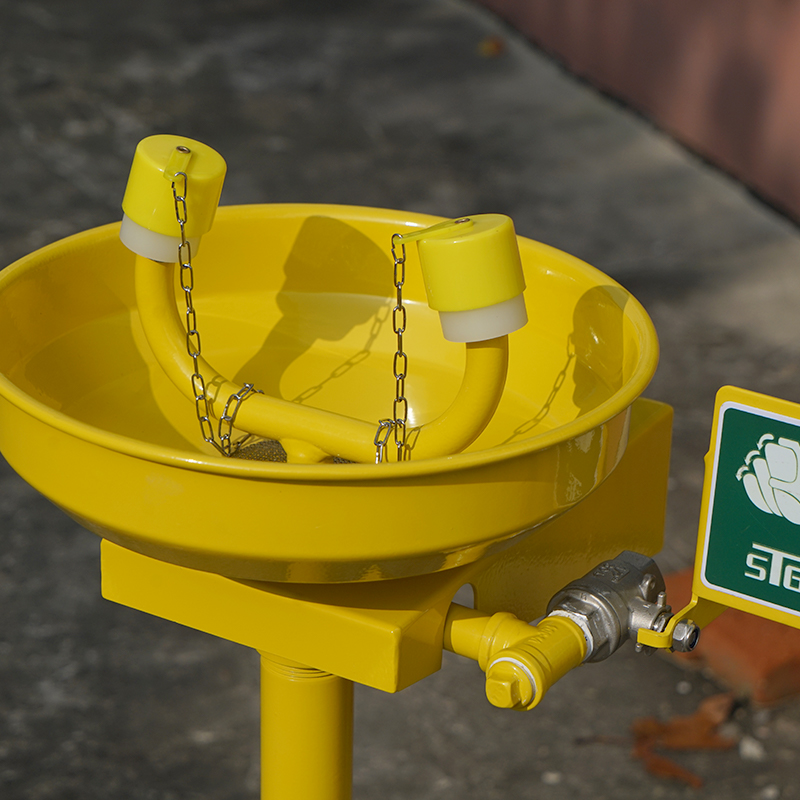

Common type immersed ABS Wall mounted Eye/face washer


The Common Type Immersed ABS Wall-Mounted Eye/Face Washer is a wall-mounted, immersed ABS protective eyewash station that combines the space-saving advantages of wall mounting with the clean and protective function of an immersed system.  Operated via a push-type valve, it provides a continuous flow of flushing water at a rate greater than 11.4 liters per minute for more than 15 minutes, effectively covering the eyes and the entire face. It is suitable for indoor work environments where both space efficiency and cleanliness are required.

Inquiry Now PDF Download
  • Features:
    Wall-mounted space optimization: Wall-mounted design saves floor space, ideal for work areas with limited space.
    Stable operation in normal temperature environments: Operates in ambient temperatures of 5–38℃ and operating temperatures of 16–38℃, suitable for regular indoor and temperate outdoor working environments.
    Quick emergency operation: Push-type valve design is simple and intuitive, allowing for quick activation in emergencies.
    Corrosion-resistant and durable composite materials: The eyewash nozzle is made of ABS material, which is lightweight and impact-resistant; core components such as the eyewash basin and valve are made of SS304 stainless steel, resistant to chemical corrosion, and suitable for use with potable tap water as the flushing fluid, preventing secondary contamination.
    Convenient installation and maintenance: Compact structure, easy wall mounting, and a transparent cover for easy daily observation and cleaning.



    Applicable scenarios:
    • Wall mounting in laboratories, cleanrooms, and other areas requiring both space efficiency and cleanliness.
    • Workstations in pharmaceutical, food, and other industries require wall-mounted emergency equipment.
    • Side walls of operating tables in medical facilities and research institutions.
    • Emergency protection points in precision work environments such as electronic assembly and instrumentation.



    TECHNICAL DATA
    Ambient temperature 5~38°C
    Operating temperature 16~38°C (Guaranteed by site)
    Inlet size 1/2" FNPT
    Outlet size 1-1/4" FNPT
    Operating pressure 0.2~0.4 MPa
    Washing liquid Tap water for drinking
    Eye wash and Face wash water flow > 11.4 L/MIN
    Washing Time > 15 MIN
    THE MATERIAL OF THE UNIT
    Eyewash elbow (E3) ABS
    Eyewash bowl (B2) SS304
    Eyewash valve SS304, Size: 1/2"
    Pipe SS304
    Base SS304, Size: 150*270*80mm
    OPERATION METHOD
    Eye/face wash Hand push
    PACKING SIZE AND WEIGHT
    Packing and size Carton packaging, L*W*H = 430*310*200 mm
    Weight 5 KG
