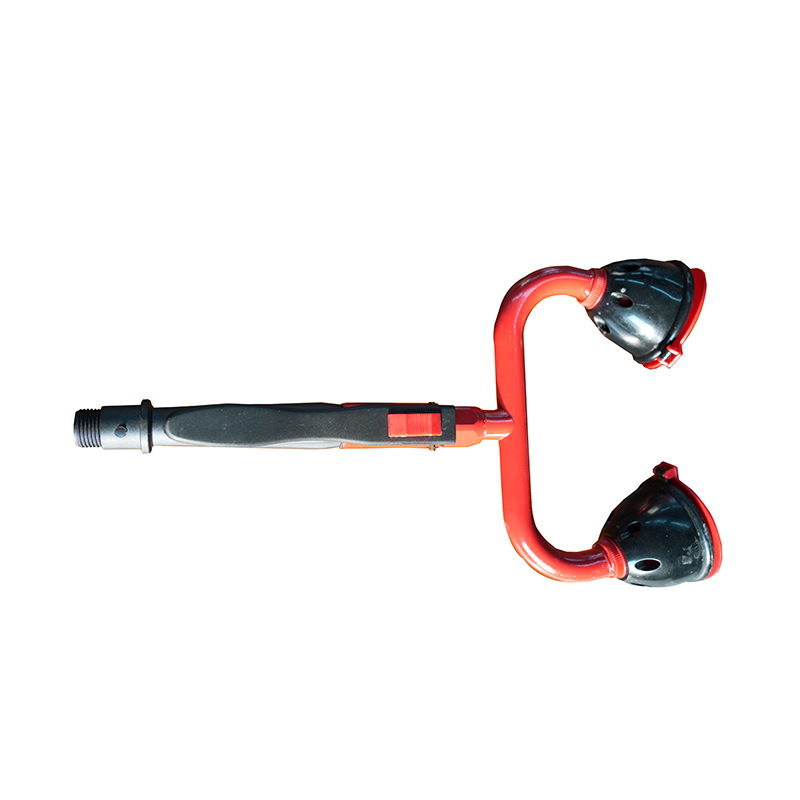

Desktop type Eye/face washer


In many work environments, especially laboratories, precision manufacturing facilities, and medical research settings, operators are often stationed at specific workstations for extended periods performing delicate tasks. Rapid access to localized emergency protection is crucial in such situations. The Desktop Eye/Face Washer is a compact emergency device designed to meet this need. Compared to wall-mounted or mobile eyewash stations, its main advantages lie in its excellent near-field accessibility and spatial integration. It can be directly installed or placed on laboratory benches, workbenches, and other operating surfaces, alongside common equipment such as microscopes, reaction apparatus, and instrument panels, providing "at-your-fingertips" emergency protection. This design ensures that users can obtain effective eye and face flushing immediately without leaving their workstations, significantly shortening accident response time, and is particularly suitable for handling small-scale, sudden splash incidents.

Inquiry Now
  • Product Features:
    Desktop Installation: Can be directly placed or fixed on the workbench, seamlessly integrating into the operating environment without occupying extra space.
    Quick Activation: The installation location is close to the operating area, and the one-button valve design allows for activation within seconds, ensuring a rapid response.
    Targeted Flushing: Equipped with ergonomically designed eyewash nozzles, providing a gentle yet concentrated water flow to effectively cover the eyes and face splash areas.
    Plug-and-Play: Connects directly to the water supply line near the workbench for easy installation; daily maintenance only requires regular testing and cleaning.



    Typical Applications:
    • Chemical laboratory benches and fume hood operating areas
    • Next to biosafety cabinets and clean workbenches
    • Medical testing benches and drug preparation areas
    • Operating positions for precision instruments such as electron microscopes
    • Student experiment benches in school teaching laboratories



    Design pressure

    Test pressure

    Water supply pressure

    Operating pressure

    0.6 MPa

    1.0 MPa

    0.2~0.4 MPa

    0.2~0.4 MPa

    Design temperature

    Suitable for ambient temperature

    Operating temperature

    65℃

    5~38℃

    16~38℃

    Washing liquid

    Inlet size

    Outlet size

    Tap water for drinking

    1/2”  FNPT



    Shower water flow

    Eye wash/ Face wash water flow

    Eye wash water flow

    N/A

    >11.4 L/MIN

    >1.5L/MIN

    The material of the shower bowl

    The material of the eyewash elbow

    The material of the eyewash bowl

    N/A

    Copper material

    N/A

    Main material

    Using Time

    Copper material

    >15 MIN
