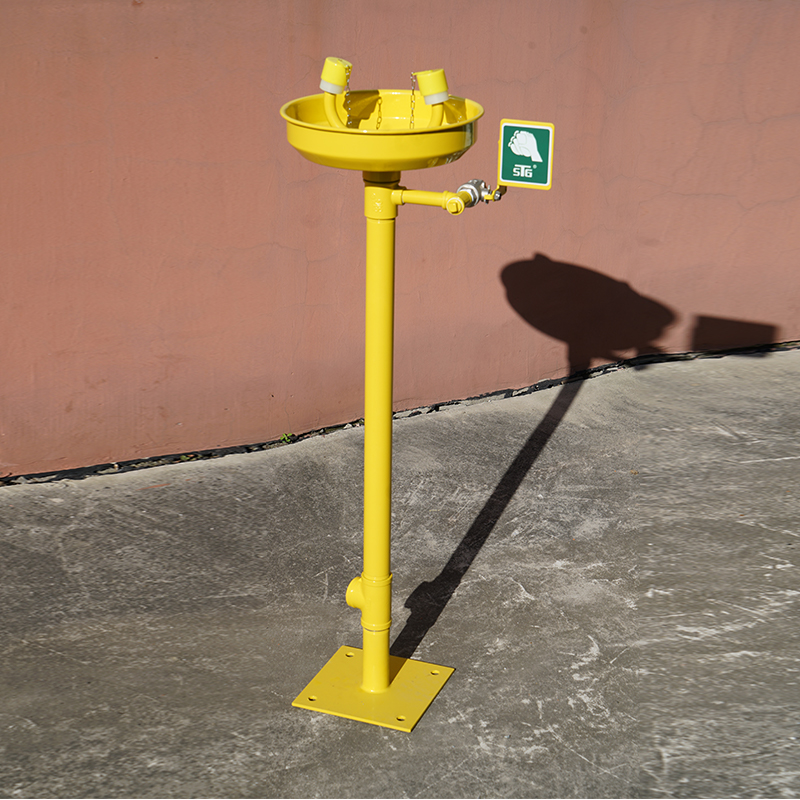

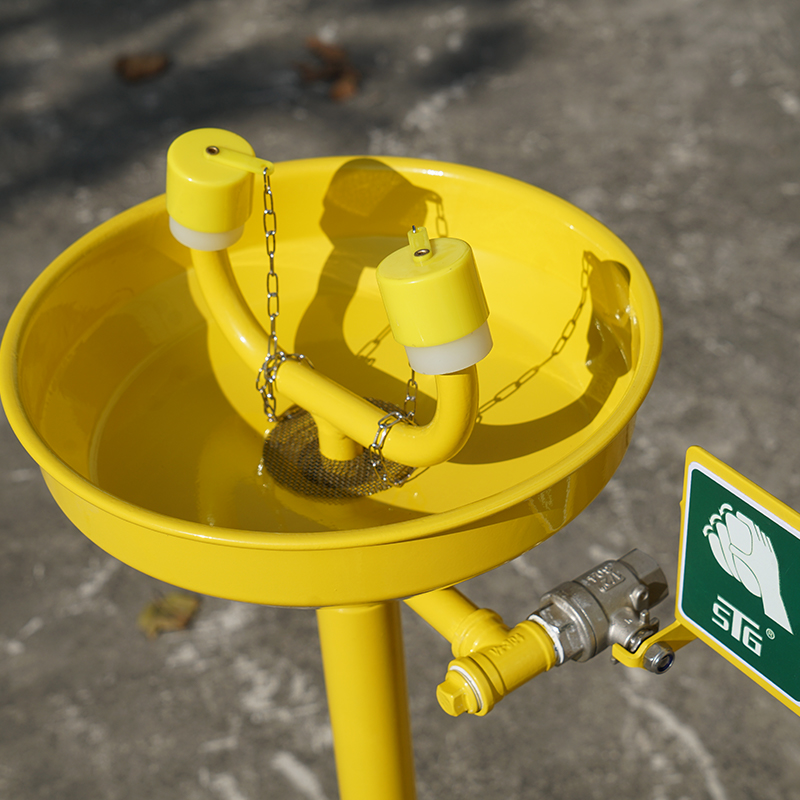

Common type immersed ABS Vertical Eye/Face washer

Common type immersed ABS Vertical Eye/Face washer is a dedicated emergency eyewash unit for general-temperature environments, with an applicable temperature range of 5–38℃. Installed directly on the floor of work sites, it features a dedicated eyewash and face wash function. When chemical substances splash onto the eyes or face, it delivers a large volume of flushing fluid, with a required flushing time of more than 15 minutes to ensure effective decontamination.

Inquiry Now PDF Download
NEXT:Freeze-Protective type Vertical Eye/face washer

  • Product Features：
    1. Standard Temperature Adaptation： Designed for general working environments with an ambient temperature of 5–38℃ and an operating temperature of 16–38℃, suitable for indoor and temperate outdoor work sites.
    2. High-flow Flushing Performance： Provides an eye/face wash flow rate of >11.4 L/MIN, ensuring sufficient flushing volume to quickly dilute and remove chemical contaminants.
    3. Durable & Corrosion-resistant Build： Core components, including the eyewash elbow, bowl, and valve, are made of SS304 stainless steel, while the main body uses immersed ABS material for good impact resistance and chemical stability.
    4. Easy Installation & Operation： Equipped with a 2002005.0mm SS304 base for stable floor mounting. The inlet is 1/2" FNPT and the outlet is 1-1/4" FNPT, enabling direct connection to on-site potable water pipelines.
    5. Reliable Emergency Response： Uses drinking tap water as the flushing fluid, ensuring clean and safe flushing. The simple push-to-operate design allows immediate activation in an emergency.

    Typical Application Scenarios：
    ·General Manufacturing Workshops: For emergency response to splashes of coolants, paints, and cleaning chemicals.
    ·Electronic Component Production Lines: To rinse flux, solvents, or other chemical splashes from operators' eyes and face.
    ·Food Processing Plants: To flush accidental splashes of cleaning agents or acidic/alkaline disinfectants.
    ·Temperate-region Laboratories: For handling splashes of non-corrosive chemical reagents during routine experiments.



    TECHNICAL DATA
    Ambient temperature 5~38°C
    Operating temperature 16~38°C (Guaranteed by site)
    Inlet size 1/2" FNPT
    Outlet size 1-1/4" FNPT
    Operating pressure 0.2~0.4 MPa
    Washing liquid Tap water for drinking
    Eye wash and Face wash water flow > 11.4 L/MIN
    Washing Time > 15 MIN
    THE MATERIAL OF THE UNIT
    Eyewash elbow (E2) SS304
    Eyewash bowl (B2) SS304
    Eyewash valve SS304, Size: 1/2"
    Pipe SS304
    Base SS304, Size: 200*200*5.0mm
    OPERATION METHOD
    Eye/face wash Hand push
    PACKING SIZE AND WEIGHT
    Packing and size Carton packaging, L×W×H = 750×430×310 mm
    Weight 10 KG
